Description

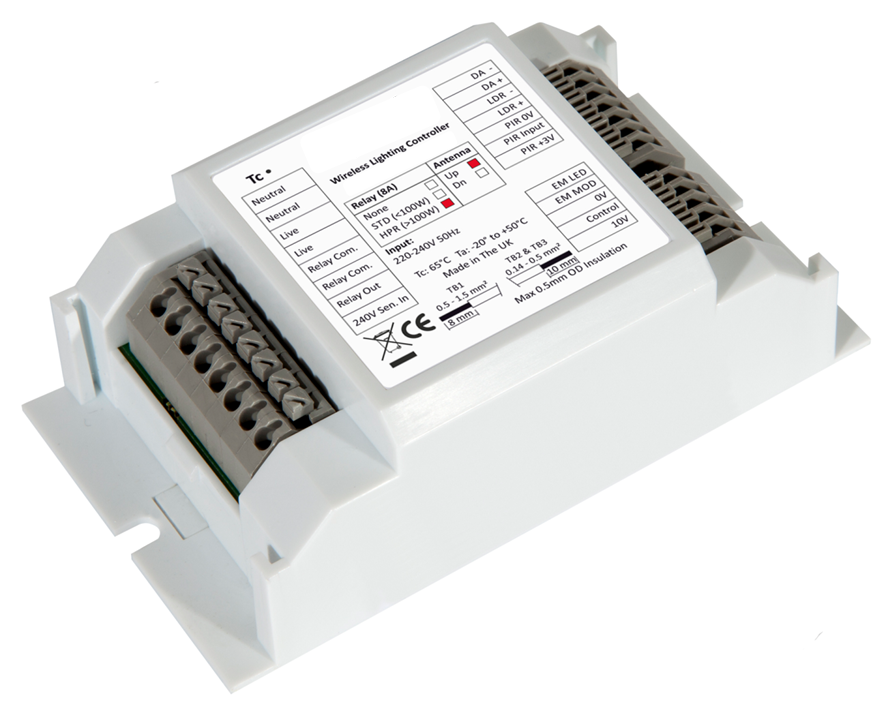

Our wireless transceiver has not only been designed to connect with all of our LED lighting product range but our wireless lighting transceiver can be integrated into existing lighting fittings currently located on site, turning the customers site into a fully scalable wireless system provides the customer full control and monitoring over their lighting installation reducing energy consumption by integrated lighting sensors, switching and controls. Wirelessly reduce lux levels when areas are not occupied and monitor the whole installation via an android tablet.
Utilising the on board volt free relay the wireless transceiver can be programmed into building management systems and building access control. For instance when a employee enters an internal area within a warehouse, the lighting sensor can be programmed to detect movement the transceiver then sends a signal to the lighting to illuminate the area and open a roller shutter so the employee can move goods freely without the need to turn on lighting or open doors by hand.
When choosing to upgrade LED lighting and include our wireless lighting technology no further wiring is required to an existing system, the wireless lighting controls only require Live Neutral and Earth to each light fitting, If retro fitting the wireless lighting control transceiver into existing site lighting then changes to existing drivers and controls maybe required.
Our wireless lighting control transceiver can also be integrated into other electrical lighting manufacturers products providing that the current drivers and internal components are compatible, it is still possible to upgrade these internal components for full system integration
Quick Look
Wireless lighting transceiver inputs :
- 240v Switched Live Input
- Switch, PIR, Microwave, Photocell
- Low Voltage Switch Input
- RTW PIR Input
- RTW Daylight Link Input
- Self-test Emergency Input
Wireless lighting transceiver outputs :
- 240v Switched Live Output
- Volt Free Relay (NO/NC)
- DS1
- DALI
- 1-10v
- PWM Output
Description
Our wireless transceiver has not only been designed to connect with all of our LED lighting product range but our wireless lighting transceiver can be integrated into existing lighting fittings currently located on site, turning the customers site into a fully scalable wireless system provides the customer full control and monitoring over their lighting installation reducing energy consumption by integrated lighting sensors, switching and controls. Wirelessly reduce lux levels when areas are not occupied and monitor the whole installation via an android tablet.
Utilising the on board volt free relay the wireless transceiver can be programmed into building management systems and building access control. For instance when a employee enters an internal area within a warehouse, the lighting sensor can be programmed to detect movement the transceiver then sends a signal to the lighting to illuminate the area and open a roller shutter so the employee can move goods freely without the need to turn on lighting or open doors by hand.
When choosing to upgrade LED lighting and include our wireless lighting technology no further wiring is required to an existing system, the wireless lighting controls only require Live Neutral and Earth to each light fitting, If retro fitting the wireless lighting control transceiver into existing site lighting then changes to existing drivers and controls maybe required.
Our wireless lighting control transceiver can also be integrated into other electrical lighting manufacturers products providing that the current drivers and internal components are compatible, it is still possible to upgrade these internal components for full system integration
Specification Sheet
